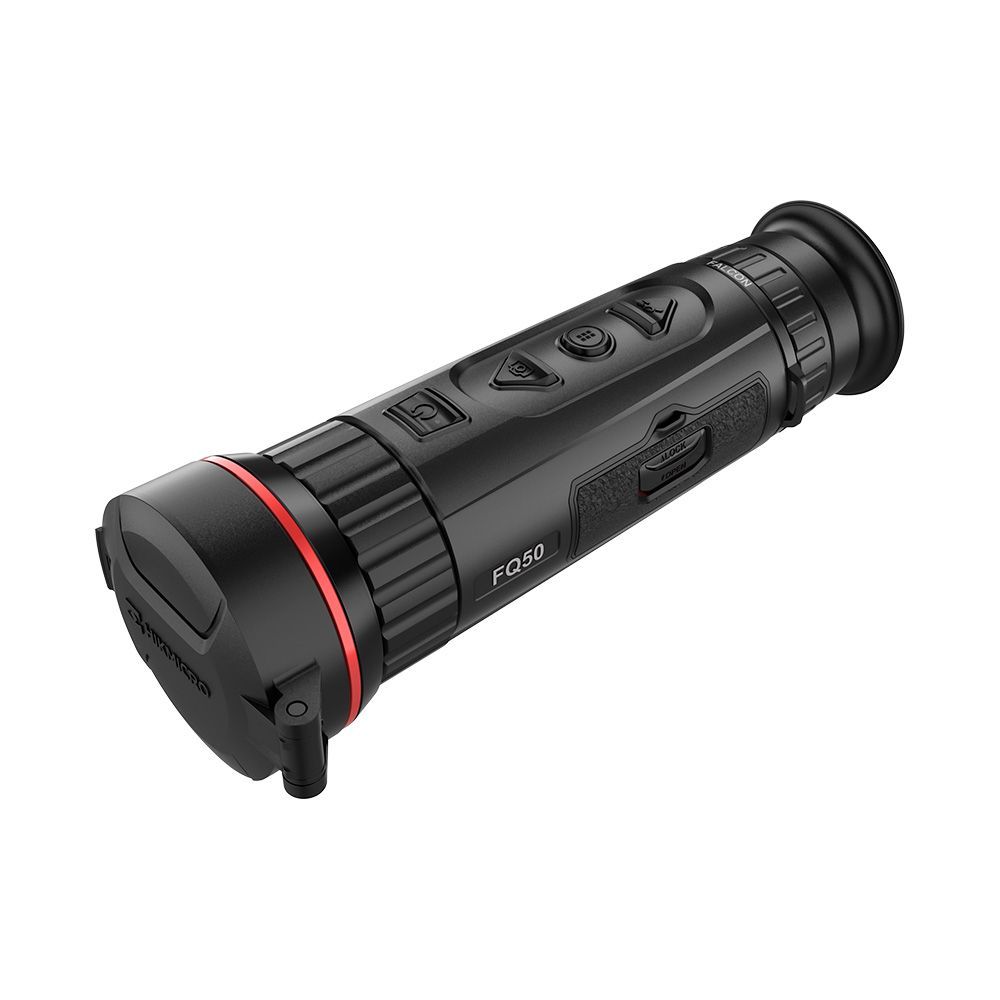

Falcon FQ50

The HIKMICRO Falcon FQ50 handheld thermal monocular is equipped with a 640 × 512 thermal sensor. It also features observation, distance measurement, Wi-Fi connectivity, and other functions. The built-in, highly sensitive thermal detector provides a clear view even in total darkness. This monocular is primarily used in search and rescue, hiking, travel, and hunting.

Main features

• 640 × 512 resolution, 12 μm, high sensitivity detector
• Adaptive AGC, DDE, 3D DNR, NETD less than 20 mk (@25°C), F#=1.0
• Replaceable and rechargeable 18650 lithium-ion battery
• Wi-Fi access point
• USB Type-C charging port

Technical specifications

• Image sensor: Uncooled focal plane arrays VOx 640 × 512
• Pixel interval: 12 μm
• Response waveband: 8 μm 14 μm
• Lens: 50 mm
• NETD: Less than 20 mK (@25°C), F# = 1.0
• Field of view: 8.75° × 7° (H × V)
• Increases: 2.6
• Monitor: OLED 1024 x 768 px
• Image frequency: 50 Hz
• Color palettes: Vivid black, vivid white, vivid red, fusion
• Digital zoom: 1×, 2×, 4×, 8×
• Hot track: Yes
• Detection range: 2600 meters
• Storage: Built-in memory module (64 GB) Yes
• Record video: Yes
• Capture instant image: Yes
• Wi-Fi: Yes
• Standby mode: Yes
• Battery Type: Replaceable and rechargeable HM-3632DC (18650) Lithium
• Operating time: Up to 5 hours of continuous operation.
• Protection: IP67
• Operating temperature: From -30°C to 55°C
• Dimensions: 203 mm × 78 mm × 67.8 mm
• Weight: 636 gr
• Warranty: 36 months
• Sensor warranty: 10 years
