ThermEye ARES660-LRF



The ThermEye ARES660-LRF, the cutting-edge thermal imager equipped with a laser rangefinder for absolute precision on your nighttime expeditions. With a superior resolution of 640×512 pixels and a 12µm sensor, this device delivers clear and detailed images in all conditions.

Its versatile 20-60mm lens, with 3.2x to 1.1x magnification, allows you to adjust the focus for precise observation.

Shutterless technology ensures smooth, uninterrupted operation with every use.

Available in elegant black, the ThermEye ARES660-LRF merges style and functionality to give you an unparalleled experience in night exploration.

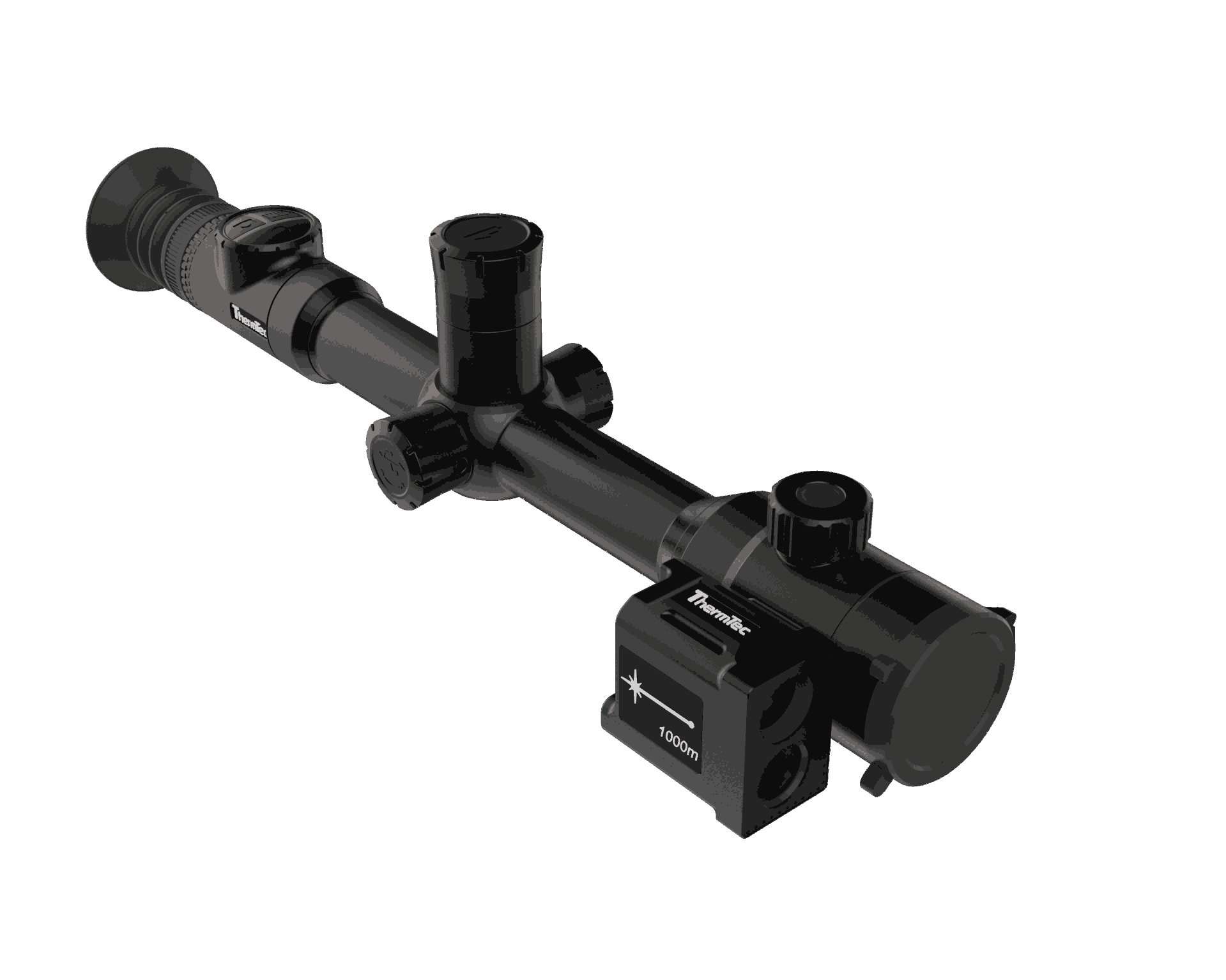

With its integrated laser rangefinder, every observation is more precise than ever.

CHARACTERISTICS

• ThermEye
• Thermal Viewer
• LRF
• Laser distance meter 1,000 meters
• Sensor resolution 640×512 VOx
• NETD ≤25mK
• Pixel size 12µm
• 20/60mm lens
• 3.2X / 1.1X magnification
• Internal memory 16 GB
• AMOLED screen
• Image capture and video recording
• Automatic recording of the shot
• Manual and automatic aiming
• 5x digital zoom
• Recoil force up to 6000J
• 5 Zeroing profiles
• 6 color palettes
• 7 grids
• WiFi
• Smartphone App
• Internal battery and removable battery with up to 12 hours of battery life
• USB Type-C connector
• IP67 protection
• Tube diameter 30mm
• Weaver-type rings included

TECHNICAL SPECIFICATIONS OF THE THERMEYE ARES 660 LRF THERMAL DEVICE:

ThermEye Ares LRF Series Sensor Type: Uncooled microbolometer Vox Resolution: 640×512 pixels Pixel Size: 12µm NETD: ≤25mK@300K Spectral Range: 8～14μm Lens: 20/60mm (F#1.0, manual focus) Distance Meter: LRF, laser, up to 1,000 meters Shutter Technology: Shutterless (Military shutterless technology) Magnification: 3.2X / 1.1X Viewing Angle: 21.7° x 17.4° / 7.3° x 5.9° Digital Zoom: 1x～5x continuous Color Palettes: 6 Display Type: 0.39″ AMOLED, 1024×768 pixel resolution, 3 image modes Diopter Adjustment: -5～ 5 Eye Relief: 50mm Maximum Focusing Force Recoil 6000J Mount 2x 30mm Weaver-type rings Zeroing Automatic / Manual Video and image playback Yes Audio recording on firing Yes Reticle 7 (center dot black, white, red and blue) Internal memory 16 GB Heat finder Yes Picture-in-Picture Reduced image superimposed on the main image, subtracting the central view of the viewfinder when zoomed in Battery type Internal battery and replaceable battery, 1x 18650 Li or 1x 18500 Li Battery life Continuous operating time up to 12h Connections USB Type C for PC connection for downloading photos and videos Communication Wi-Fi Wi-Fi connection with app

Hotspot connection with app

Operating temperature: -20℃～ 50℃ Protection rating: IP67, drop resistant from 1 meter Weight: 1,250g (with batteries) Dimensions: 438mm × 84mm × 105mm

INCLUDES:

• ThermEye Ares660-LRF Thermal Viewer
• Magnetic eye bellows
• USB-C data cable
• Protective case
• 18650 Battery Holder (BATT-ER18650 Battery INCLUDED)
• 18500 battery holder (Battery NOT INCLUDED)
• 18650 Battery Charger BATT-LI-CHARGER
• 30mm Picatinny Rings – 2X
• 18650 Li Batteries – 2X
